Guide Band

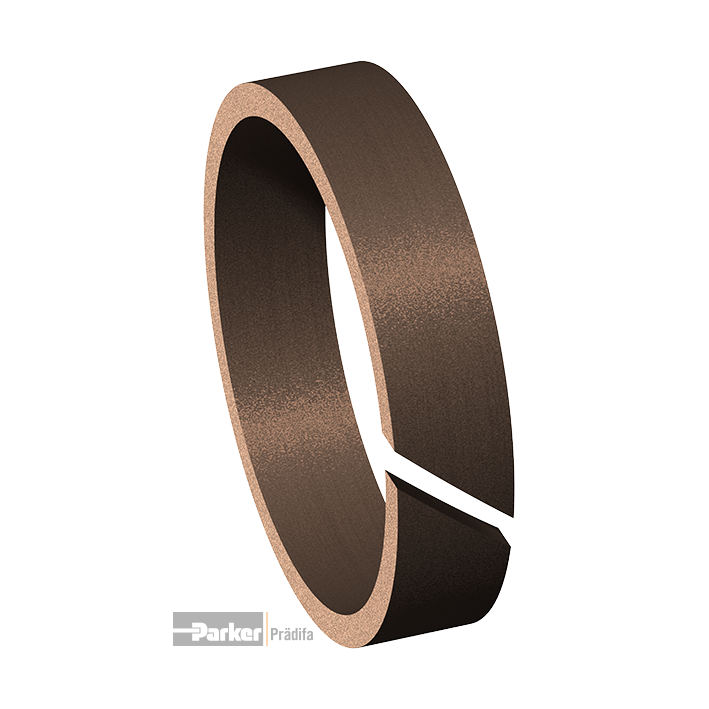

The guide strip profile F3 has been conceived specially for use in hydraulic cylinders.

Specification

  • Profile description :
    F3
  • Operating pressure max :
    -
  • Sliding speed max (m/s) :
    5.0
  • Temperature(°C) :
    -100/+200
Datasheet

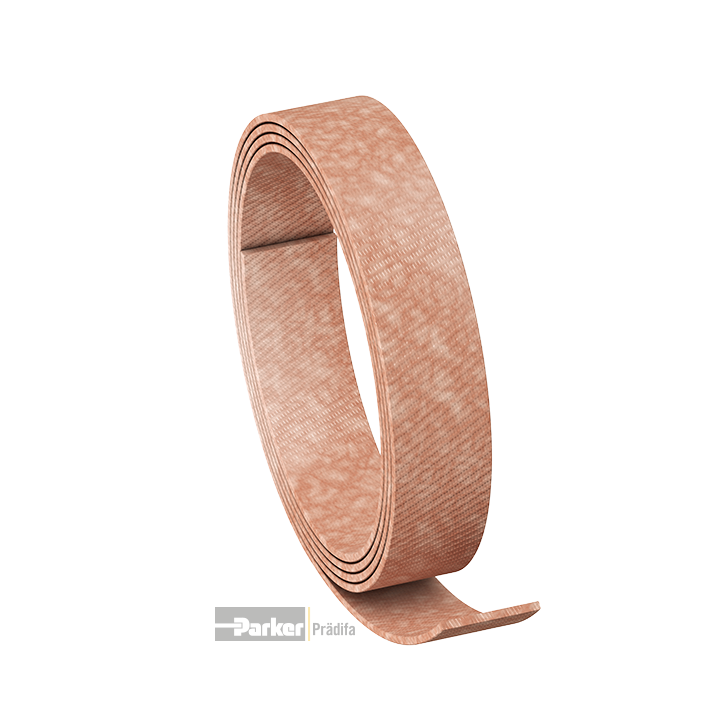

The guide strip profile FC is extraordinarily wear-resistant and is suitable for use as a piston guide or rod guide. It can be adapted to any desired length (max. 5.5 m). The band is rolled into flat coils with a core diameter of approx. 120 mm. It is sold exclusively by the roll (5.5 m). The customer will have to adjust the length himself.

Specification

  • Profile description :
    FC
  • Operating pressure max :
    -
  • Sliding speed max (m/s) :
    0.5
  • Temperature(°C) :
    -50/+130
Datasheet

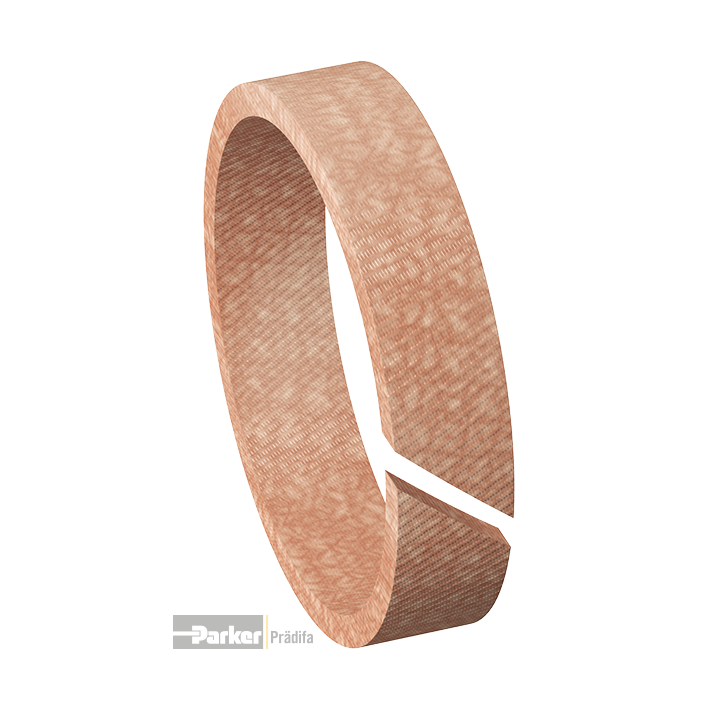

The guide ring profile FR is open, making it easy to install. It is extraordinarily resistant to wear and is suitable for use as a rod guide. When using this guide ring, the design of the cylinder head is simplified.

Specification

  • Profile description :
    FR
  • Operating pressure max :
    -
  • Sliding speed max (m/s) :
    0.5
  • Temperature(°C) :
    -50/+130
Datasheet
