Flexi Seal

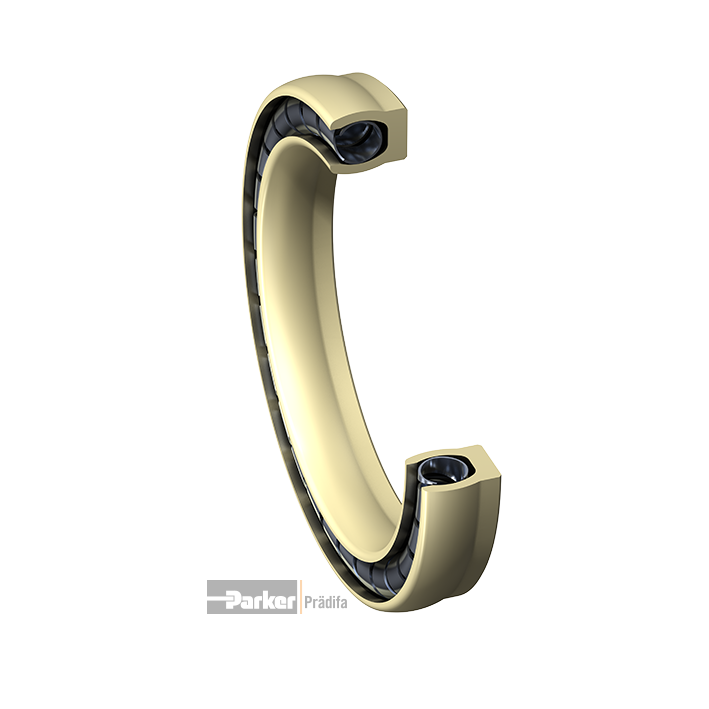

The profile NAA is excellent for both static and intermittently dynamic applications. The seal can be used for reciprocating or rotating movements on either inner or outer diameter.

Profile NAA is particularly suitable for valve stems, secondary sealing in mechanical seals, connectors, pistons and swivel joints.

Specification

  • Profile description :
    NAA
  • Operating pressure max :
    200
  • Sliding speed max (m/s) :
    0.005
  • Temperature(°C) :
    -260/+315

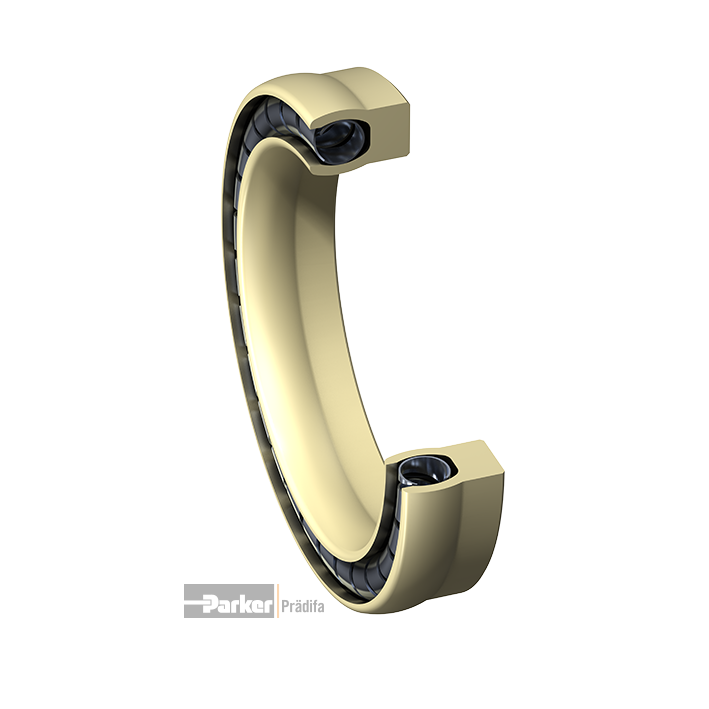

The profile NHA is excellent for both static and intermittently dynamic applications at high pressures. The seal can be used for reciprocating or rotating movements on either inner or outer diameter.

Profile NHA is particularly suitable for high-pressure valve stems, connectors, pistons and swivel joints.

Specification

  • Profile description :
    NHA
  • Operating pressure max :
    550
  • Sliding speed max (m/s) :
    0.005
  • Temperature(°C) :
    -260/+315

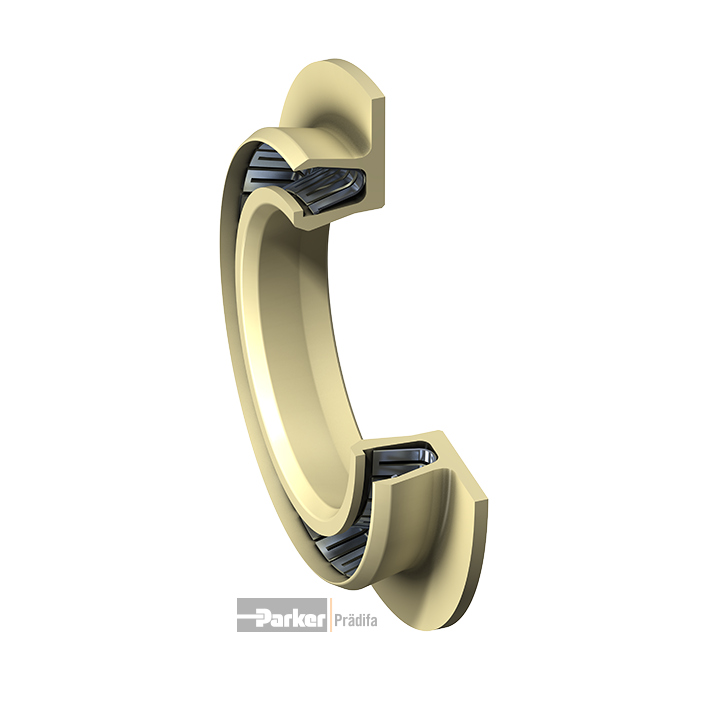

The profile NHA is excellent for both static and intermittently dynamic applications at high pressures. The seal can be used for reciprocating or rotating movements on either inner or outer diameter.

Profile NHA is particularly suitable for high-pressure valve stems, connectors, pistons and swivel joints.

Specification

  • Profile description :
    FLO
  • Operating pressure max :
    200
  • Sliding speed max (m/s) :
    10
  • Temperature(°C) :
    -260/+315

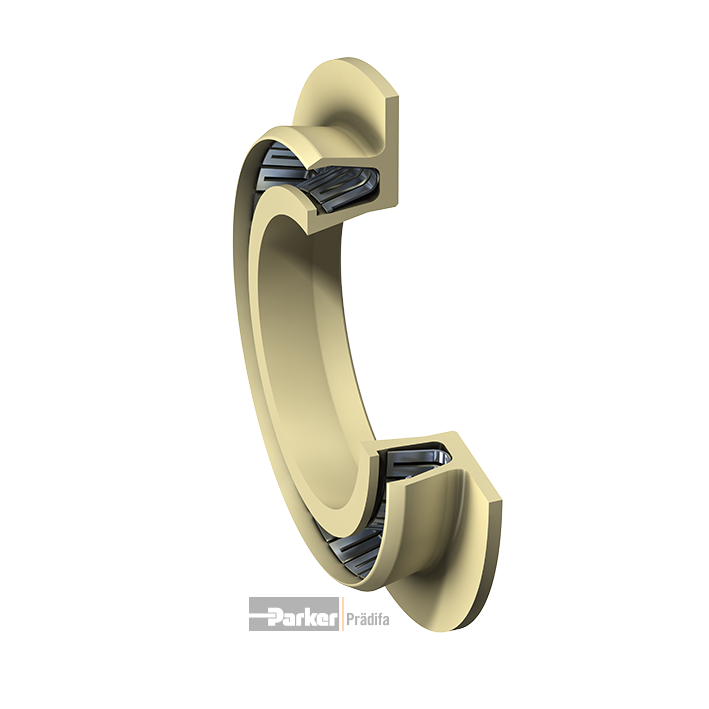

The profile FLS is the best choice for sealing rotating shafts with abrasive media such as in pumps, motors and rotary actuators.

Specification

  • Profile description :
    FLS
  • Operating pressure max :
    200
  • Sliding speed max (m/s) :
    10
  • Temperature(°C) :
    -260/+315

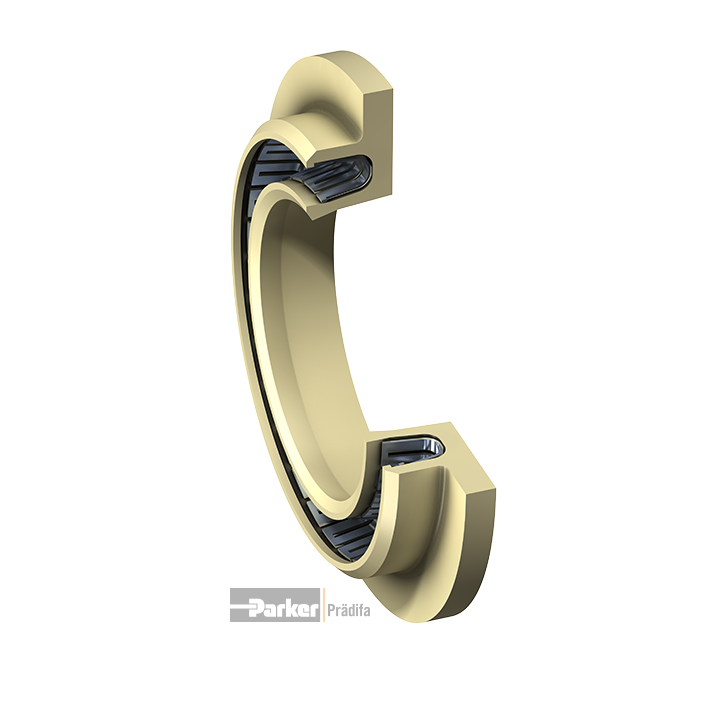

The profile JDO is identical to the former profile JD and is the best choice for sealing rotating shafts as in pumps, motors and rotary actuators.

Specification

  • Profile description :
    JDO
  • Operating pressure max :
    200
  • Sliding speed max (m/s) :
    10
  • Temperature(°C) :
    -260/+315

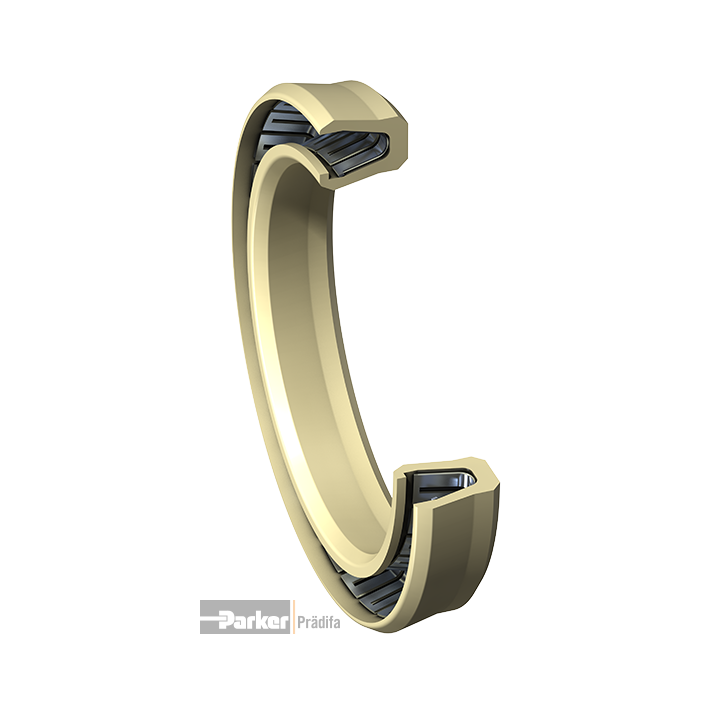

The profile NLA is ideal for static applications where there is need for a higher deflection due to wider gland tolerance or excessive expansion and contraction. NLA can also be used for inside and outside dynamic applications.

Specification

  • Profile description :
    NLA
  • Operating pressure max :
    200
  • Sliding speed max (m/s) :
    5
  • Temperature(°C) :
    -260/+315

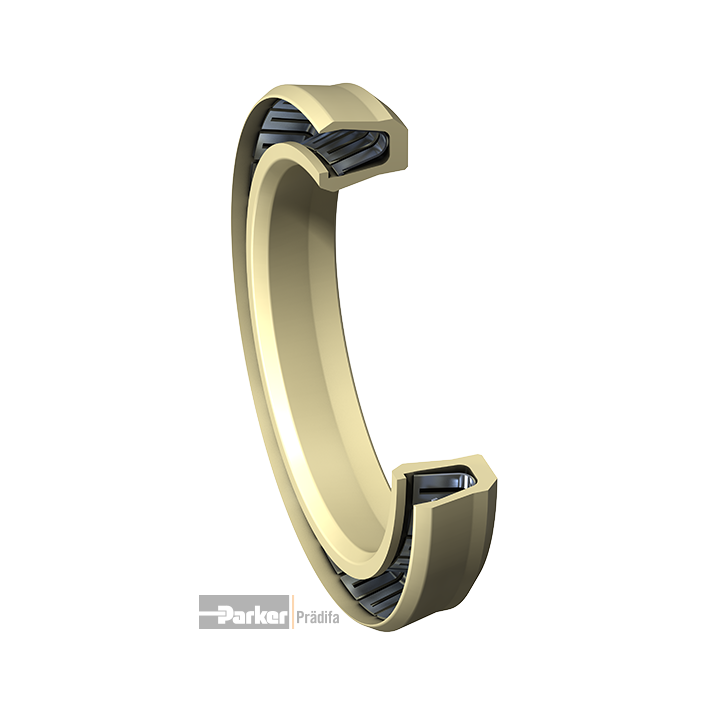

The profile NLI is ideal for sealing rotating shafts without the possibility of a flange cavity in the groove. It can also be used in low-pressure reciprocating applications.

Profile NLI is particularly suitable for pumps, motors, rotary actuators and reciprocating stems.

Specification

  • Profile description :
    NLI
  • Operating pressure max :
    200
  • Sliding speed max (m/s) :
    5
  • Temperature(°C) :
    -260/+315

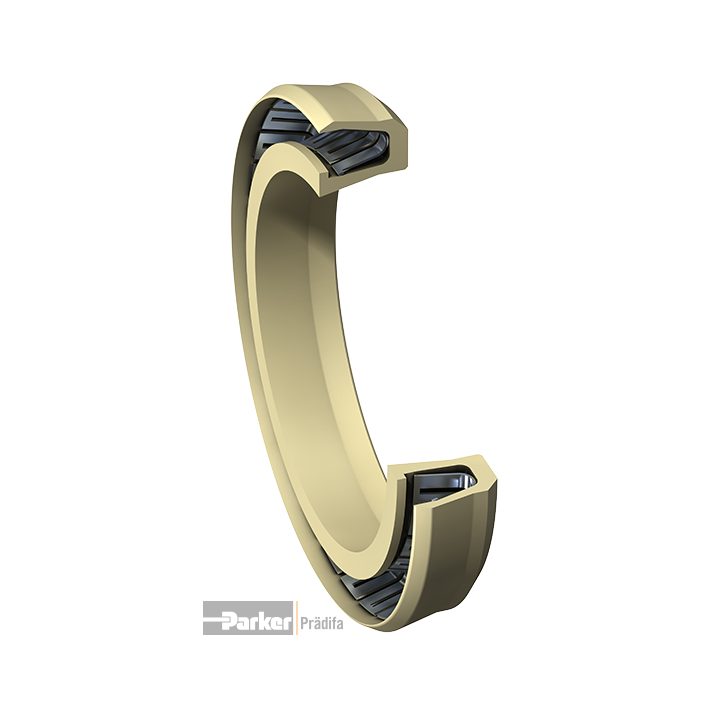

The profile SLI is ideal for sealing abrasive media for rotating shafts without the possibility of a flange cavity in the groove. It can also be used in low-pressure reciprocating applications.

Profile SLI is particularly suitable for pumps, motors, rotary actuators and reciprocating stems.

Specification

  • Profile description :
    SLI
  • Operating pressure max :
    200
  • Sliding speed max (m/s) :
    5
  • Temperature(°C) :
    -260/+315

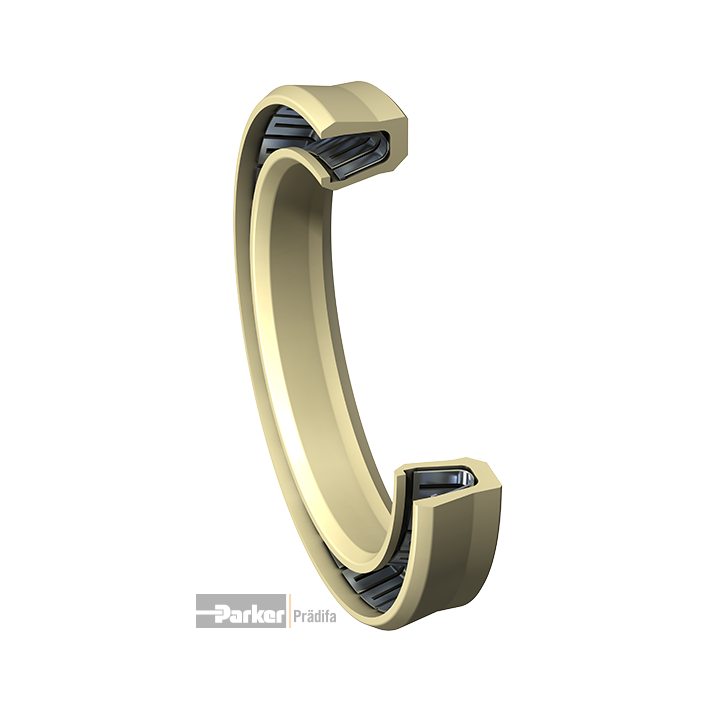

The profile NLO is ideal for sealing outside rotating housings. It can also be used in low-pressure reciprocating piston applications.

Specification

  • Profile description :
    NLO
  • Operating pressure max :
    200
  • Sliding speed max (m/s) :
    5
  • Temperature(°C) :
    -260/+315

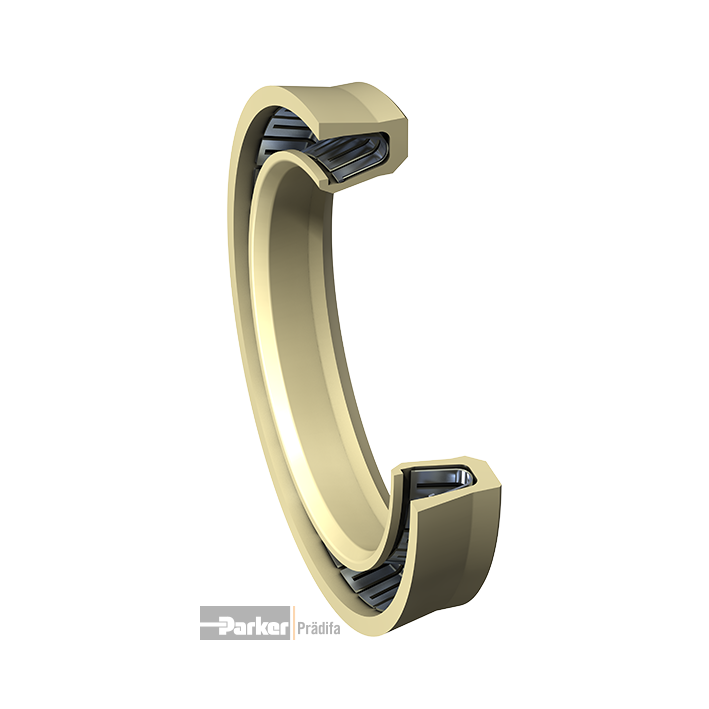

The profile SLO is ideal for sealing abrasive media with outside rotating housings. It can also be used in low-pressure reciprocating applications.

Specification

  • Profile description :
    SLO
  • Operating pressure max :
    200
  • Sliding speed max (m/s) :
    5
  • Temperature(°C) :
    -260/+315

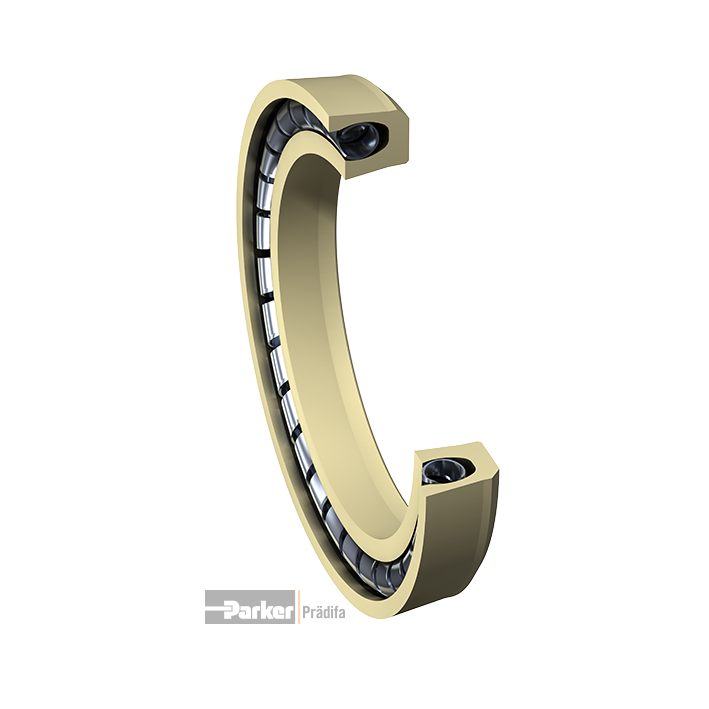

The profile BAI is ideal for sealing reciprocating actuator rods.

Specification

  • Profile description :
    BAI
  • Operating pressure max :
    200
  • Sliding speed max (m/s) :
    15
  • Temperature(°C) :
    -260/+315

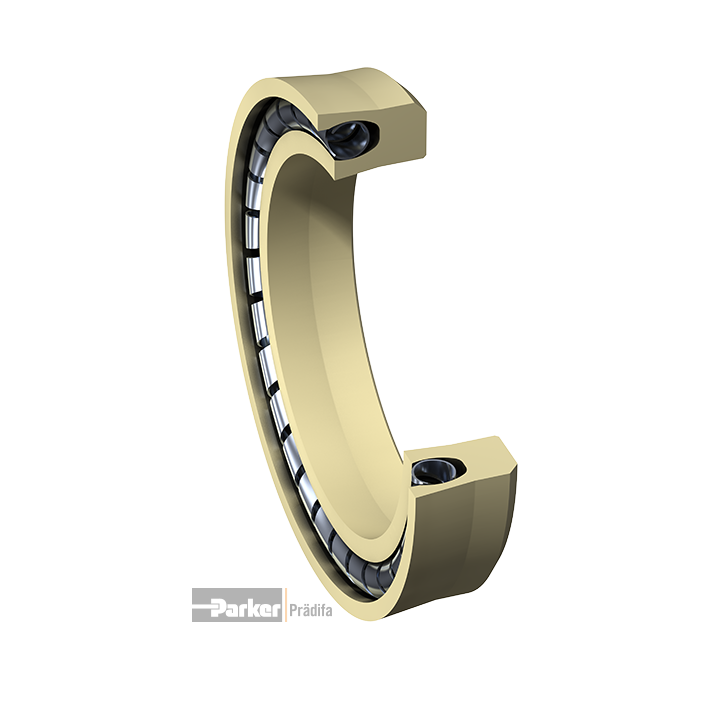

The profile BHI is ideal for sealing high-pressure, reciprocating actuator rods.

Specification

  • Profile description :
    BHI
  • Operating pressure max :
    550
  • Sliding speed max (m/s) :
    15
  • Temperature(°C) :
    -260/+315

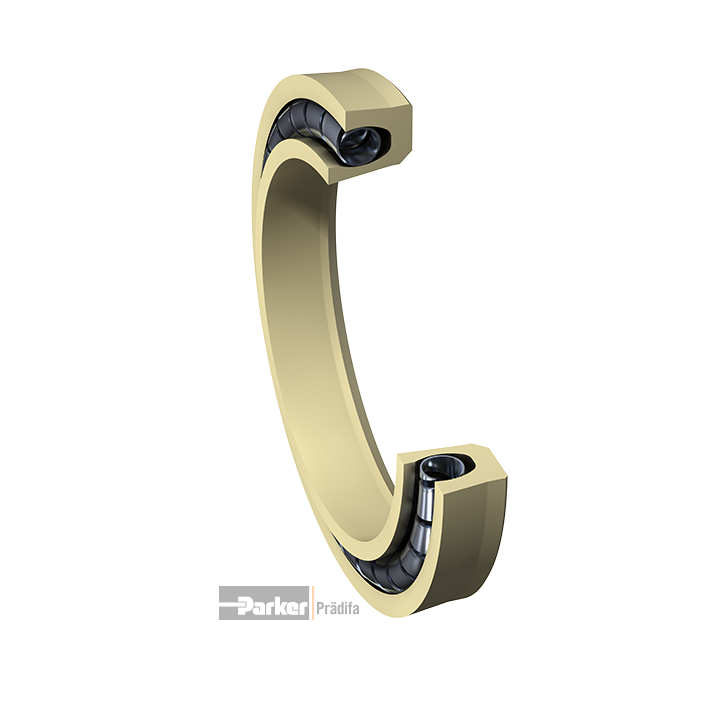

The profile BAO is ideal for reciprocating piston sealing.

Specification

  • Profile description :
    BAO
  • Operating pressure max :
    200
  • Sliding speed max (m/s) :
    15
  • Temperature(°C) :
    -260/+315

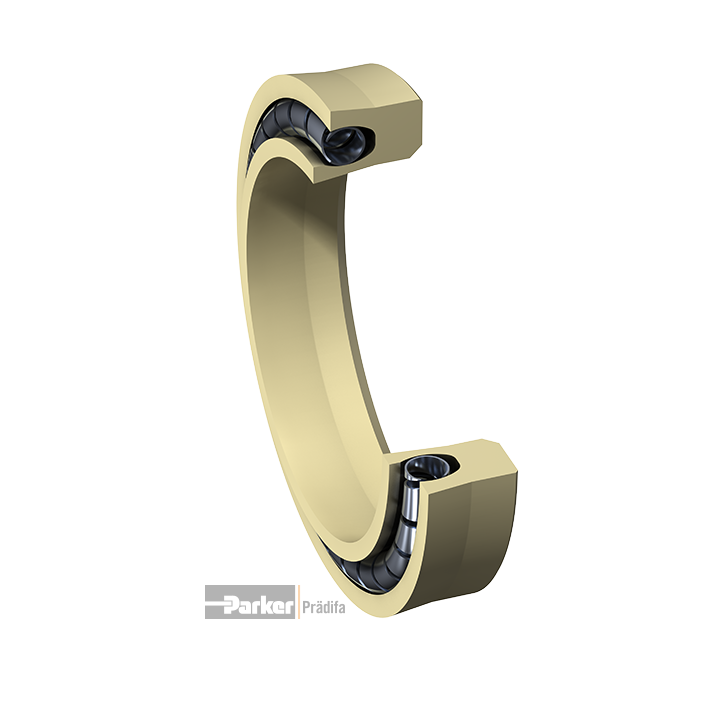

The profile BHO is ideal for high-pressure piston sealing.

Specification

  • Profile description :
    BHO
  • Operating pressure max :
    550
  • Sliding speed max (m/s) :
    15
  • Temperature(°C) :
    -260/+315

The profile BHO is ideal for high-pressure piston sealing.

Specification

  • Profile description :
    NAI
  • Operating pressure max :
    550
  • Sliding speed max (m/s) :
    0.005
  • Temperature(°C) :
    -260/+315

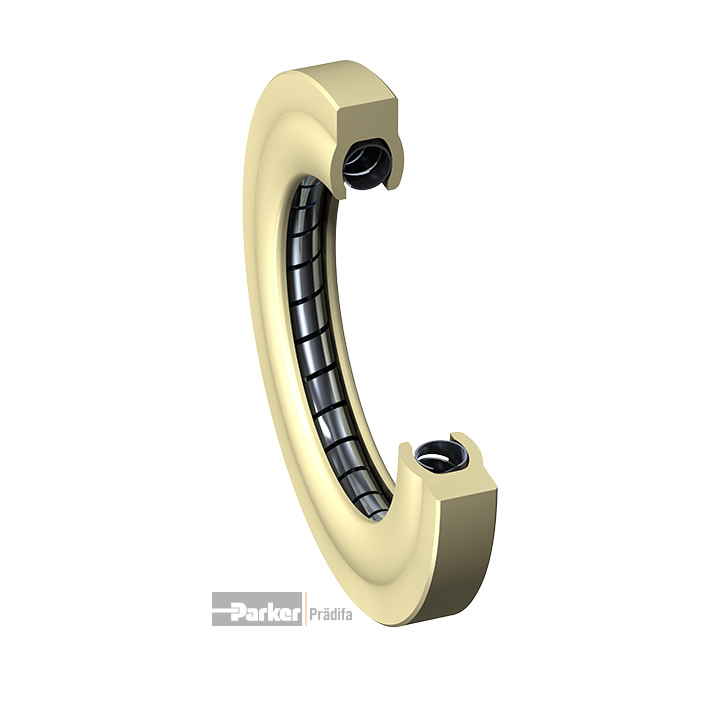

The profile NHI is excellent for sealing internally high-pressurized static and intermittently dynamic flange applications.

Specification

  • Profile description :
    NHI
  • Operating pressure max :
    1400
  • Sliding speed max (m/s) :
    0.005
  • Temperature(°C) :
    -260/+315

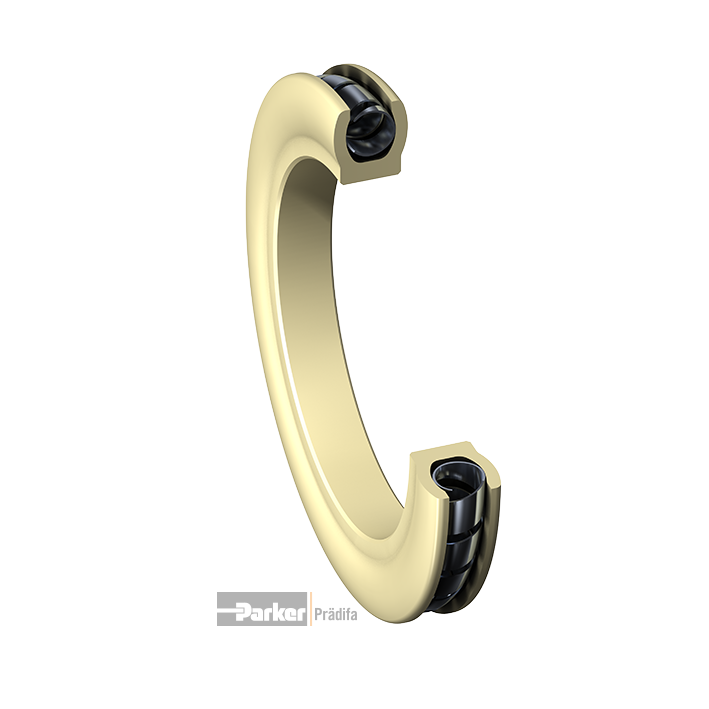

The profile NAE is excellent for sealing externally pressurized static and intermittently dynamic flange applications.

Specification

  • Profile description :
    NAE
  • Operating pressure max :
    550
  • Sliding speed max (m/s) :
    0.005
  • Temperature(°C) :
    -260/+315

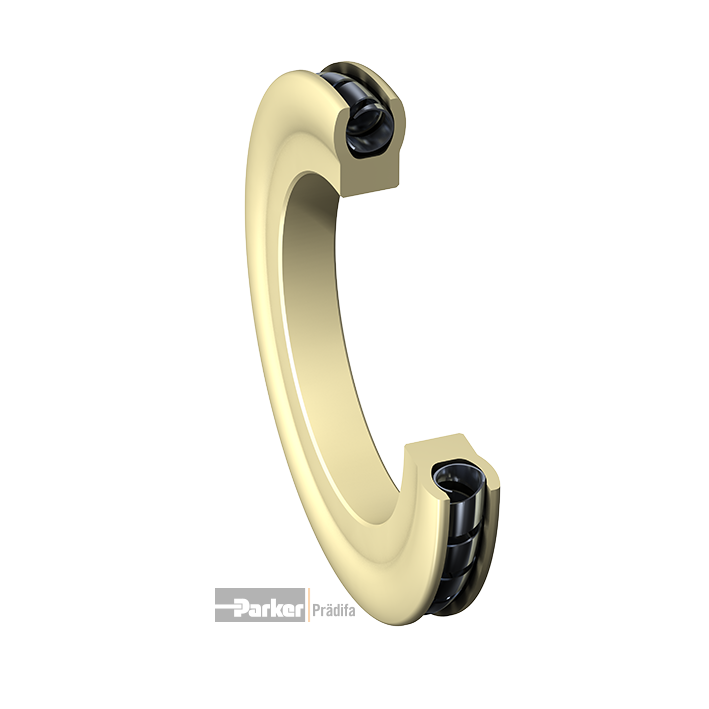

The profile NHE is excellent for sealing internally high-pressurized static and intermittently dynamic flange applications.

Specification

  • Profile description :
    NHE
  • Operating pressure max :
    1400
  • Sliding speed max (m/s) :
    0.05
  • Temperature(°C) :
    -260/+315

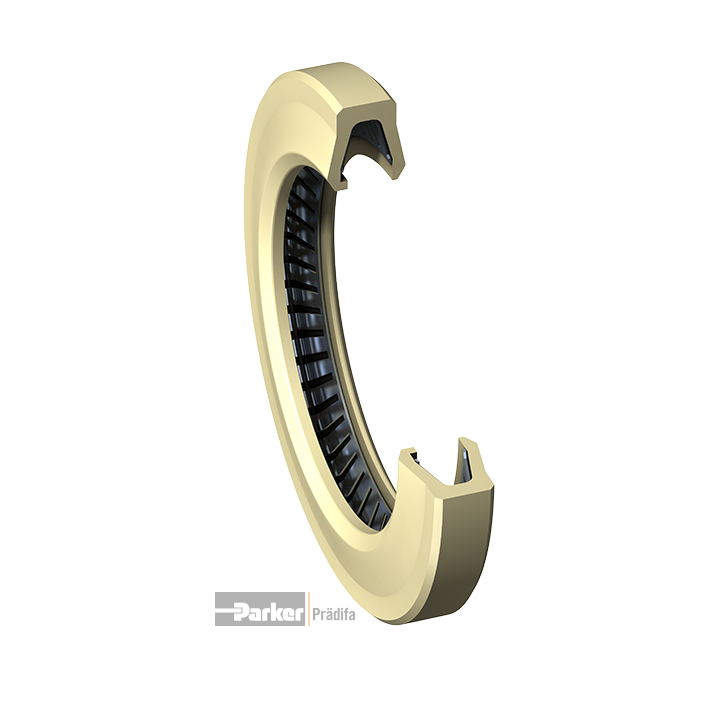

The profile NLF is excellent for sealing static and dynamic internally pressurized flange applications, in particular where bolt load and friction are limited or a higher deflection range is required.

Specification

  • Profile description :
    NLF
  • Operating pressure max :
    350
  • Sliding speed max (m/s) :
    5
  • Temperature(°C) :
    -260/+315

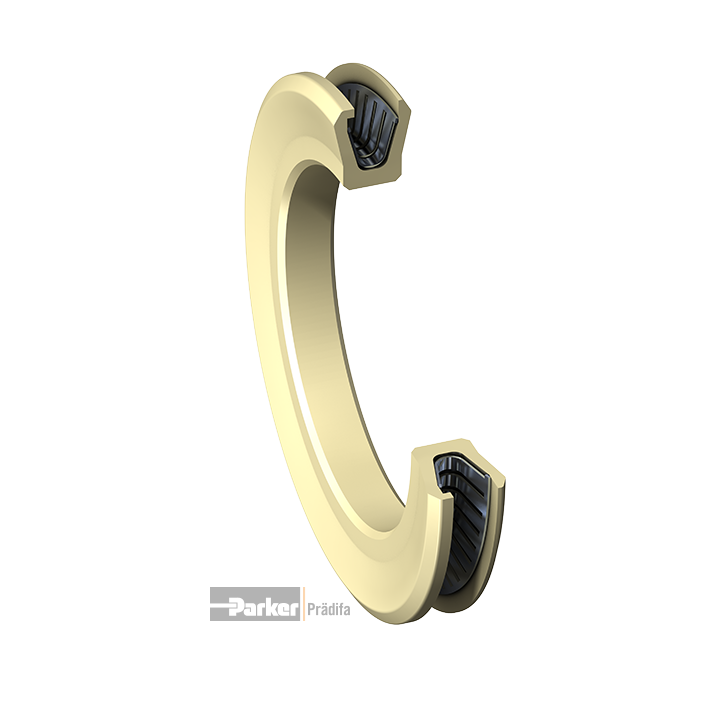

The profile NLG is excellent for sealing static and dynamic externally pressurized flange applications, in particular where bolt load and friction are limited or a higher deflection range is required.

Specification

  • Profile description :
    NLG
  • Operating pressure max :
    350
  • Sliding speed max (m/s) :
    5
  • Temperature(°C) :
    -260/+315

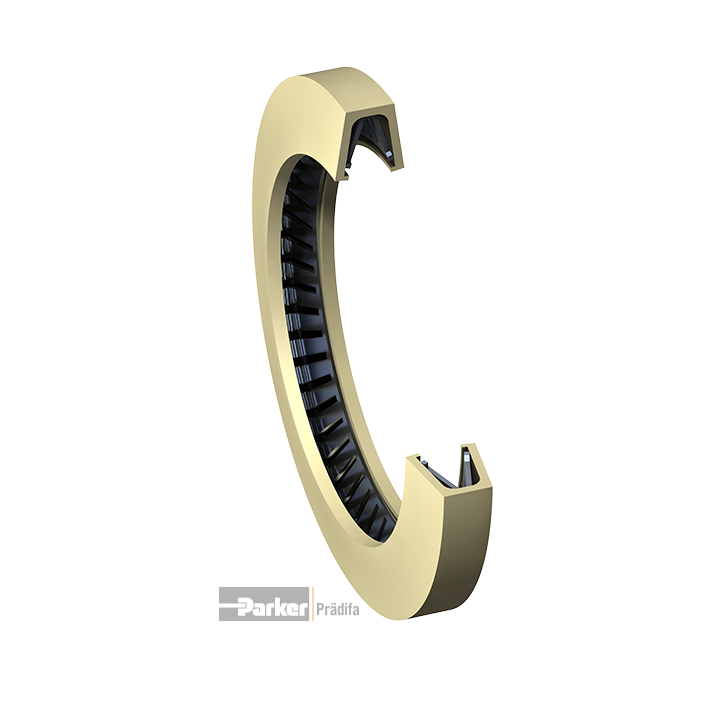

The profile NRI is ideal for sealing internally pressurized flanges, in particular cryogenic static and intermittently dynamic applications.

Specification

  • Profile description :
    NRI
  • Operating pressure max :
    350
  • Sliding speed max (m/s) :
    0.005
  • Temperature(°C) :
    -260/+315

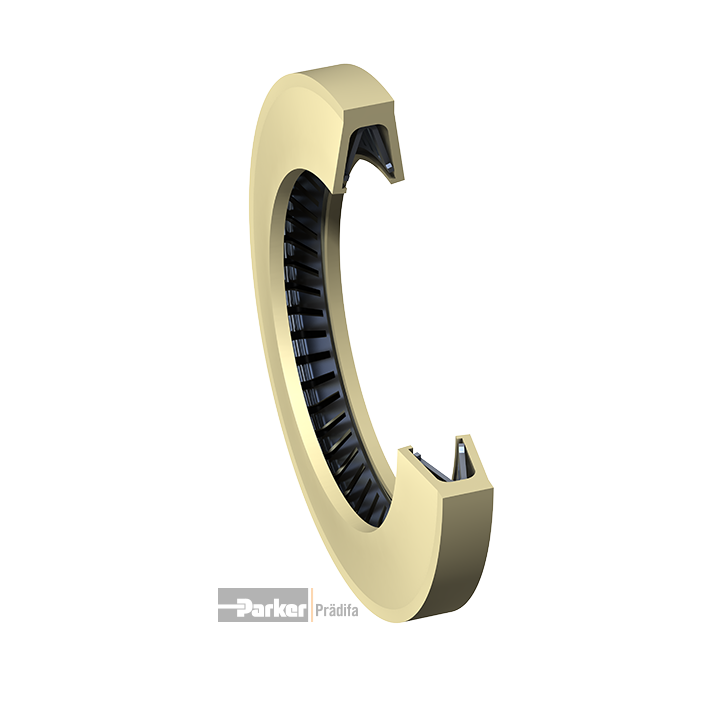

The profile HRI is ideal for sealing internally high-pressurized flanges, in particular cryogenic static and intermittently dynamic applications.

Specification

  • Profile description :
    HRI
  • Operating pressure max :
    550
  • Sliding speed max (m/s) :
    0.005
  • Temperature(°C) :
    -260/+315

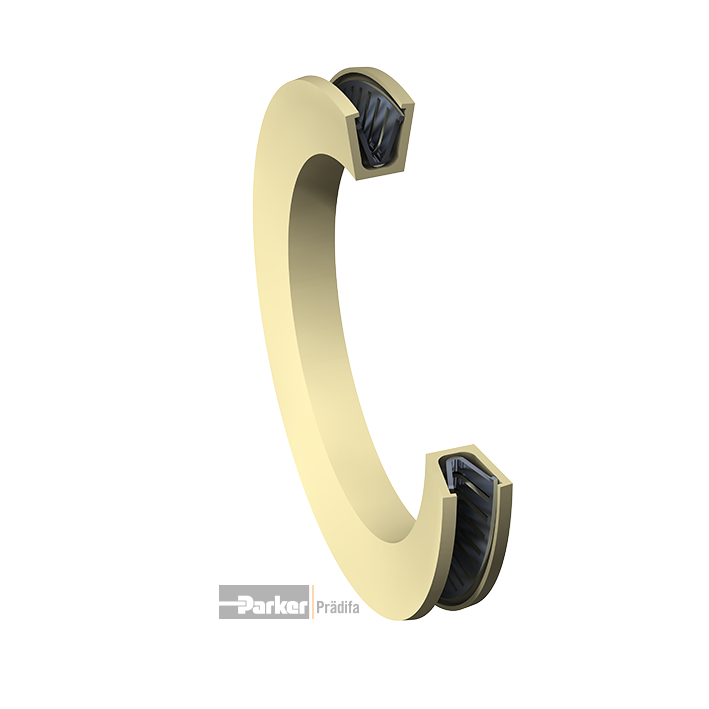

The profile NRE is ideal for sealing externally pressurized flanges, in particular cryogenic static and intermittently dynamic applications.

Specification

  • Profile description :
    NRE
  • Operating pressure max :
    350
  • Sliding speed max (m/s) :
    0.005
  • Temperature(°C) :
    -260/+315

The profile HRE is ideal for sealing externally high-pressurized flanges, in particular cryogenic static and intermittently dynamic applications.

Specification

  • Profile description :
    HRE
  • Operating pressure max :
    550
  • Sliding speed max (m/s) :
    0.005
  • Temperature(°C) :
    -260/+315
